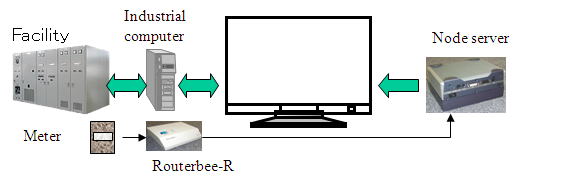

Example of system configuration for power capping is shown.
Control operation of facilities, in order to reduce energy, is done automatically, in prospect of power to exceed.Routerbee-R and Node server, Power meter are provided here.Node server will launch to execute macro command consisted of scenario in prospect of power to exceed, causes to Routerbee-R to operate the control page of screen monitor provided by current computer. Node server is able to choice the best scenario in accordance with current situations to reduce energy for power capping.

.



2 Mieruka

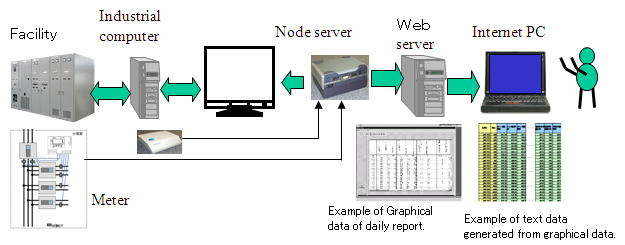

Example of system configuration for Mieruka (identifying problems and bringing them to the foreground) of energy consumption is shown.Energy consumption data, gathered by current computer, is usually displayed on screen monitor for operator. Node server will perform macro command to operate screen monitor of current computer automatically, instead of operator, and get the energy data from graphical data. DA function installed in Node server is used here, for analyzing graphical data and to convert these data in text formula.Energy data will transfer via internet. These are available to get, to analyze and able to identify problems.

3 Supervisory Control

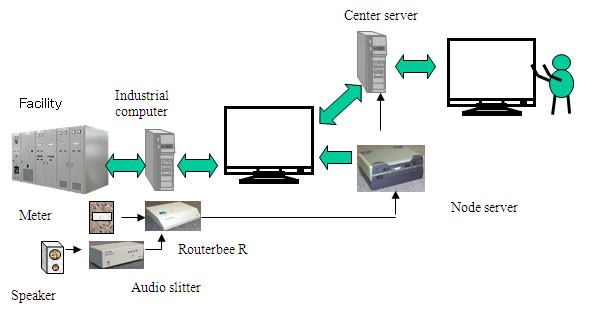

Example of system configuration for supervisory control function with automatic operation is shown.Routerbee system is available for operator, in order to control facilities, consisted with many kinds of existing computers.Here, operator is required to know how to operate existing different computers completely, causes him to burden.We are ready to provide the excellent solutions for him to avoid from heavy duty.Routerbee system consist of AGT and SVC, is available.Operator is able to launch control operations for complicate facility, by just a clicking operation of start symbol. Violation of sensor is also available to launch control operations instead of operator.

4 Supervisory Control with Mobails

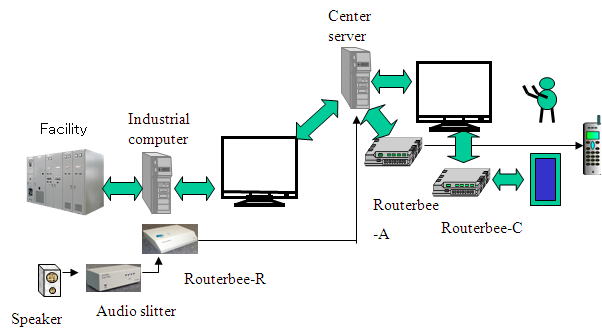

Example of system configuration for supervisory control function associated with mobile terminals is shown.

5 Power Capping Associated with industrial Computers

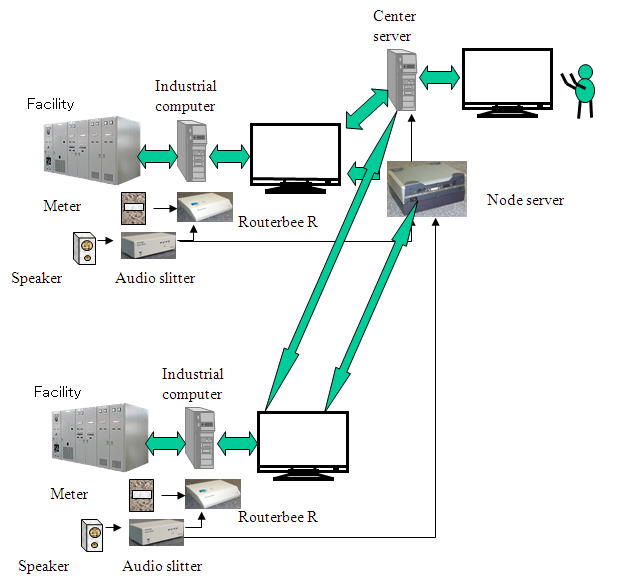

Example of system configuration for power capping associated with numbers of industrial computer is shown.It is more effective to do power capping operation associated with numbers of facilities, rather than do it for individual facility. Because it is usual that some time one facility will exceed power, another one has allowance of enough margin.Control operation of facilities, in order to reduce energy, is done automatically, in prospect of total power to exceed.Routerbee-R and Node server, Power meter are provided here. Node server will launch to execute macro command consisted of scenario in prospect of total power to exceed, causes to Routerbee-R to operate the control page of screen monitor provided by current computer. Node server is able to choice the best scenario in accordance with current situations to reduce energy for power capping.
